Google Pay Integration via UCP and ACI Worldwide

Last updated: July 8, 2026

Overview

Learn how a Google AI agent uses Universal Commerce Protocol (UCP) and Google Pay to complete a checkout and process payments through ACI Worldwide (OPPWA).

This guide is a practical implementation of the concepts introduced in the Agentic Commerce overview. It demonstrates how UCP handles checkout orchestration while Google Pay provides tokenized payment credentials that are processed by ACI Worldwide.

At a high level:

AI Agent → UCP Checkout → Google Pay Token → POST /checkout-sessions/{id}/complete → ACI /v1/payments → Approved Transaction

Payment Flow

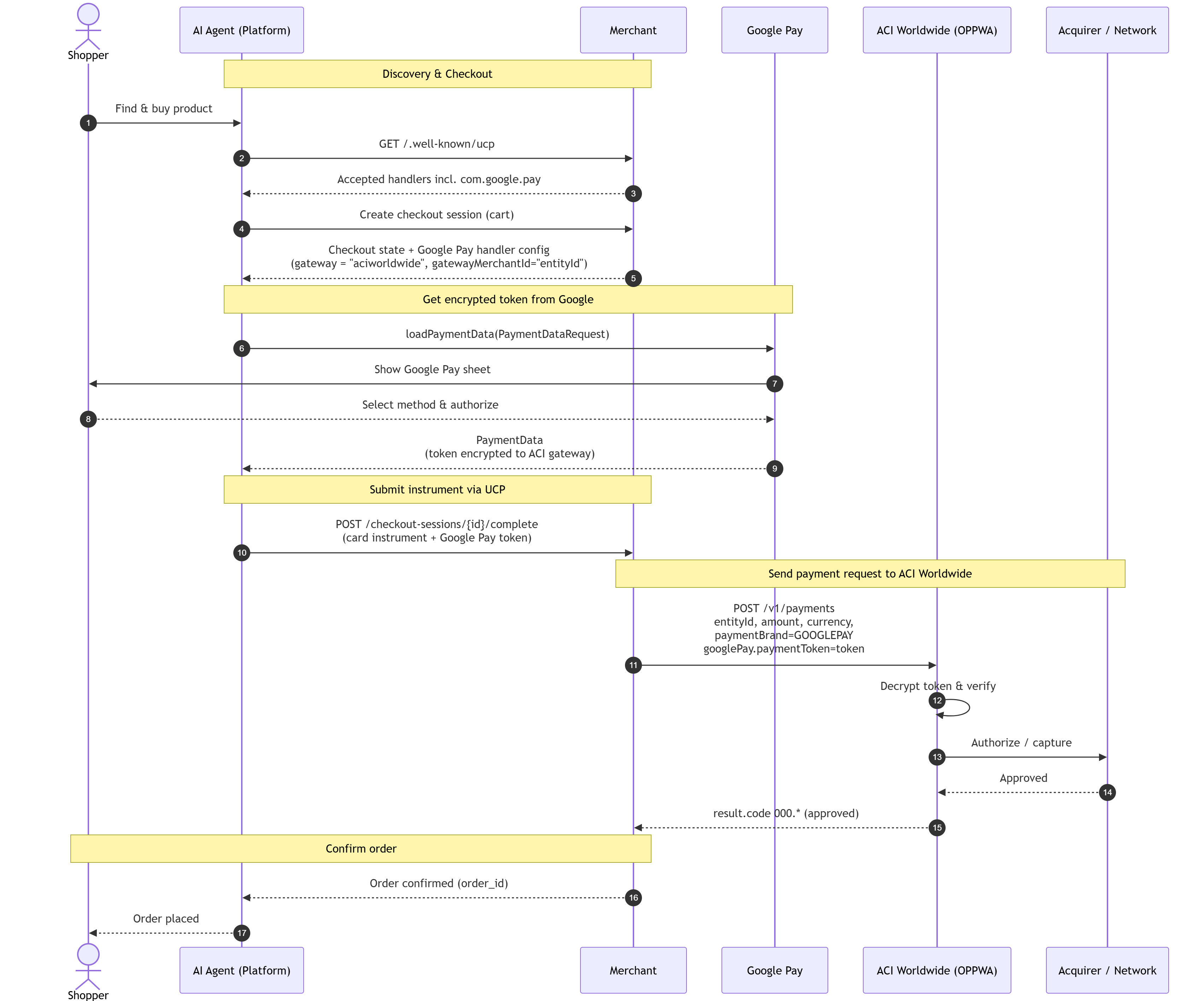

The following sequence shows how the shopper, AI Agent (Platform), merchant, Google Pay, ACI Worldwide (OPPWA), and the acquiring network interact during checkout and payment processing.

The AI Agent acquires a Google Pay token during checkout and submits it as the UCP payment instrument. The merchant backend then charges the transaction through ACI Worldwide.

1. The shopper finds and selects a product through the AI Agent.
2. The AI Agent retrieves the merchant's UCP profile using GET /.well-known/ucp.
3. The merchant returns accepted payment handlers, including com.google.pay.
4. The AI Agent creates a checkout session using the shopper's cart.
5. The merchant returns the checkout state and Google Pay handler configuration.
6. The AI Agent requests payment data from Google Pay.
7. Google Pay displays the payment sheet.
8. The shopper selects a payment method and authorizes the purchase.
9. Google Pay returns payment data containing the encrypted payment token.
10. The AI Agent submits the payment instrument using POST /checkout-sessions/{id}/complete.
11. The merchant backend submits the payment request to ACI Worldwide using POST /v1/payments.
12. ACI Worldwide decrypts and validates the token.
13. ACI Worldwide submits the authorization request through the acquiring side.
14. The acquirer / network returns the authorization result.
15. ACI Worldwide returns the transaction result to the merchant.
16. The merchant confirms the order and generates an order ID.
17. The AI Agent confirms the transaction to the shopper.

Requirements

To follow this integration, accounts and approvals are required on the Google Pay side, the ACI Worldwide side, and the UCP integration side.

Google Pay

• Google Pay & Wallet Console account.
• Google Pay Merchant ID for the PRODUCTION environment.
• Google Pay API Terms of Service accepted.
• ACI Worldwide configured as the selected payment processor / gateway.

ACI Worldwide

• ACI account with a valid entityId.
• API access token for TEST and PRODUCTION environments.
• Configuration enabled for paymentBrand=GOOGLEPAY.
• Supported card brands enabled according to the merchant setup.
• TEST endpoint: https://eu-test.oppwa.com
• PRODUCTION endpoint: https://eu-prod.oppwa.com

UCP / Agent Side

• Merchant UCP profile published at /.well-known/ucp.
• Checkout endpoints supporting create, update, and complete operations.
• AI Agent integrating both UCP and Google Pay.
• Server-side backend responsible for processing payment requests through ACI Worldwide.

Configure the Google Pay Handler

The com.google.pay payment handler must be declared in the merchant's UCP profile and returned in checkout responses.

The handler configuration includes the Google Pay tokenization settings that instruct Google to generate a payment token specifically for ACI Worldwide processing.

Important Parameters

Return the same payment handler declaration in checkout responses so the AI Agent uses the correct configuration and the platform enforces the correct checkout requirements for that session.

{
  "payment_handlers": {
    "com.google.pay": [
      {
        "id": "<handler_instance_uuid>",
        "version": "2026-01-23",
        "config": {
          "environment": "TEST",
          "merchant_info": {
            "merchant_name": "{{MERCHANT_NAME}}",
            "merchant_id": "{{GOOGLE_PAY_MERCHANT_ID}}"
          },
          "allowed_payment_methods": [
            {
              "type": "CARD",
              "tokenization_specification": {
                "type": "PAYMENT_GATEWAY",
                "parameters": {
                  "gateway": "aciworldwide",
                  "gatewayMerchantId":
                    "{{ACI_GATEWAY_ENTITY_ID}}"
                }
              }
            }
          ]
        }
      }
    ]
  }
}

Process Payment

Payment processing consists of two stages:

1. The AI Agent obtains the encrypted Google Pay token and submits it through UCP.
2. The merchant backend submits the payment request to ACI Worldwide.

Get Encrypted Token from Google Pay

On the AI Agent side, the Google Pay API returns a PaymentData object. The encrypted token is available at:

paymentMethodData.tokenizationData.token

The token should be passed to the merchant without modification.

paymentsClient.loadPaymentData(paymentDataRequest)
  .then(function(paymentData) {

    const googlePayToken =
      paymentData.paymentMethodData
        .tokenizationData
        .token;

    submitToUcpComplete(googlePayToken);

});

Submit Payment Instrument via UCP

The AI Agent maps the Google Pay token into a UCP payment instrument and submits it to:

POST /checkout-sessions/{id}/complete

The merchant receives the encrypted token inside the UCP Payment object.

{
  "payment": {
    "instruments": [
      {
        "id": "instr_1",
        "handler_id": "<handler_instance_uuid>",
        "type": "card",
        "selected": true,
        "brand": "visa",
        "last_digits": "1111",
        "credential": {
          "token":
            "<encrypted Google Pay token JSON>"
        }
      }
    ]
  }
}

Send Payment Request to ACI Worldwide

After receiving the token, the merchant backend submits a server-to-server payment request using the standard OPPWA payment endpoint.

Use:

paymentBrand=GOOGLEPAY

and pass the encrypted Google Pay token as received from Google Pay.

POST https://eu-test.oppwa.com/v1/payments

Authorization: Bearer {{ACI_ACCESS_TOKEN}}

entityId={{ACI_ENTITY_ID}}
amount=49.99
currency=USD
paymentType=PA
paymentBrand=GOOGLEPAY
googlePay.paymentToken=
  <url-encoded Google Pay token>

Result Codes

Treat the transaction as successful only when result.code matches an approved pattern.

On an approved result code, finalize the order and return the order ID to the AI Agent.

On decline, return a UCP payment error so the AI Agent can prompt the shopper accordingly.

Test and Go Live

Testing

Before moving to production, verify the complete flow from Google Pay token generation through UCP checkout completion and ACI payment processing.

• Set the payment handler environment to TEST.
• Use the ACI TEST endpoint:
  https://eu-test.oppwa.com
• Use Google's test card suite or sample payment tokens.
• Verify successful token acquisition from Google Pay.
• Verify submission through POST /checkout-sessions/{id}/complete.
• Verify payment processing through ACI Worldwide.
• Test approval, decline, and pending transaction scenarios.
• Confirm correct error handling and shopper messaging.

Go Live

Once testing is complete, update the integration for production use.

• Complete Google Pay production onboarding and approval processes.
• Switch the Google Pay environment from TEST to PRODUCTION.
• Configure the production Google Pay Merchant ID.
• Use production ACI credentials.
• Switch payment requests to:
  https://eu-prod.oppwa.com
• Execute a low-value live transaction.
• Verify settlement and transaction reporting.
• Confirm operational monitoring before enabling broad usage.
